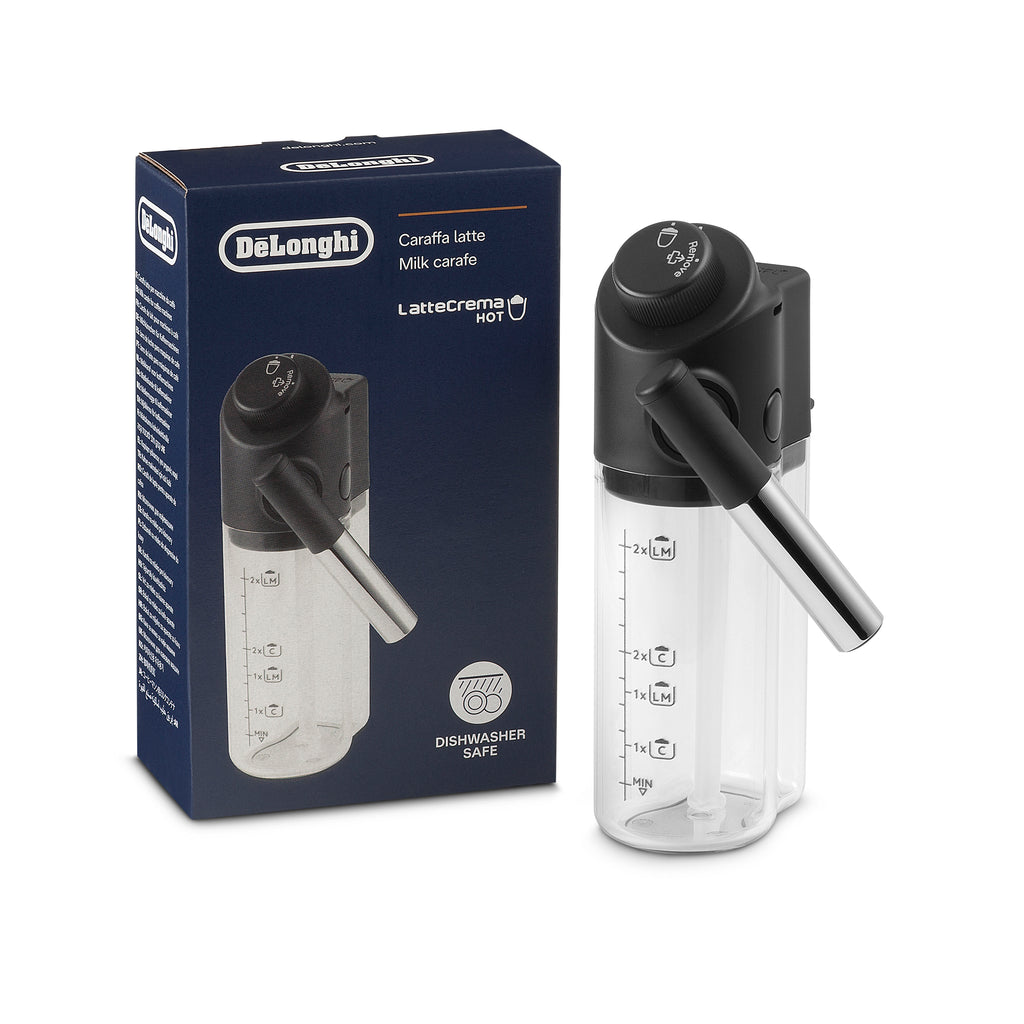

Delonghi Magnifica Evo Coffee Machine Milk Jug - 7313268961 AS00005733

The milk jug is one of the most frequently used and replaced parts on a fully automatic bean-to-cup coffee machine. This is the genuine replacement milk jug (also called the milk carafe) for the DeLonghi Magnifica Evo and Magnifica Start range, originally listed as AS00006022, superseded to AS00005733, then further superseded to AS00009731. The current stocked version is the latest available replacement. It includes the milk jug with coupling and milk suction tube, and uses the LatteCrema system to deliver creamier foam for all milk-based coffee drinks.

This is a genuine DeLonghi part, designed to fit and connect exactly as the original. The jug is clear so you can monitor milk levels, detaches easily for cleaning, and can be stored in the fridge between uses. Also known by codes DLSC028, AS00006274, AS00004328, AS00004319, and AS00004318. It is available from the DeLonghi coffee machine parts collection at Steve's Appliance Spares for fast dispatch across New Zealand.

Key Features

• Genuine DeLonghi replacement milk jug for Magnifica Evo and Magnifica Start models
• LatteCrema system -- delivers creamier milk foam for cappuccinos, lattes, and other milk-based drinks
• Includes: milk jug with coupling and milk suction tube
• Use cold milk for optimal foam results
• Self-cleaning function can be activated after each use
• Detachable -- can be stored in the fridge after use
• Clear plastic construction so milk level is always visible
• Hand wash only -- do not use a dishwasher
• Part codes: 7313268961 / AS00005733 (supersedes AS00006022; further superseded to AS00009731)
• Cross-references: DLSC028, AS00006274, AS00004328, AS00004319, AS00004318

Product Details

• Product code: 7313268961 / AS00005733
• Also known as: AS00006022 (original), AS00009731 (latest supersession)
• Cross-references: DLSC028, AS00006274, AS00004328, AS00004319, AS00004318
• Type: Genuine DeLonghi replacement milk jug / carafe
• Includes: Milk jug with coupling and milk suction tube
• Material: Clear plastic
• Cleaning: Hand wash only
• Stock: Check live availability on the product page

Compatibility

This milk jug is confirmed compatible with a wide range of DeLonghi Magnifica Evo, Magnifica Start, and FEB series bean-to-cup machines. The full verified compatibility list appears in the table at the end of this description. New Zealand-specific confirmed models include ECAM290.62.B (AU/NZ) and ECAM290.83.TB (AU/NZ). Use our model spares directory to confirm compatibility with your exact model number.

How to Use and Installation Notes

• Before first use, wash the milk jug thoroughly by hand with warm water and a mild detergent.
• Fill the jug with cold milk to the desired level -- cold milk produces better foam results.
• Push the jug firmly into the machine's milk jug connection point until it clicks into place. Do not force it.
• Select your preferred milk-based drink on the machine. The LatteCrema system will foam and deliver the milk automatically.
• After use, remove the jug and rinse it immediately to prevent milk from drying inside.
• Activate the machine's self-cleaning function for the milk circuit after each use where the option is available.
• Wash all removable jug parts by hand. Do not put any part of this jug in a dishwasher.
• The jug can be stored in the fridge with leftover milk inside for convenience.

Fitting and Safety Note

Related Parts and Collections

If you need other accessories for the Magnifica Evo, we also stock the DeLonghi Magnifica Evo milk suction tube and the DeLonghi Magnifica Evo milk jug coupling AS00006262. These components work together with the milk jug and are worth checking if the machine is not frothing correctly even with a new jug.

Browse the full DeLonghi coffee machine spare parts collection for filters, descaler, group seals, and other consumables. We also carry the DeLonghi Magnifica Espresso milk jug complete 5513211621 for the older ESAM3500 series if you have an earlier Magnifica model.

• DeLonghi coffee machine spare parts

• DeLonghi coffee machine accessories NZ

• Magnifica Evo milk jug coupling AS00006262

• Magnifica Evo milk suction tube

Email us your model number at steve@appliancespares.nz if you need help confirming the correct milk jug version for your DeLonghi machine.
