Fisher & Paykel Washing Machine Out of Balance Switch PRE-2000 Models - 426321


Price:
Sale price$7.45 + Freight and GST

Description

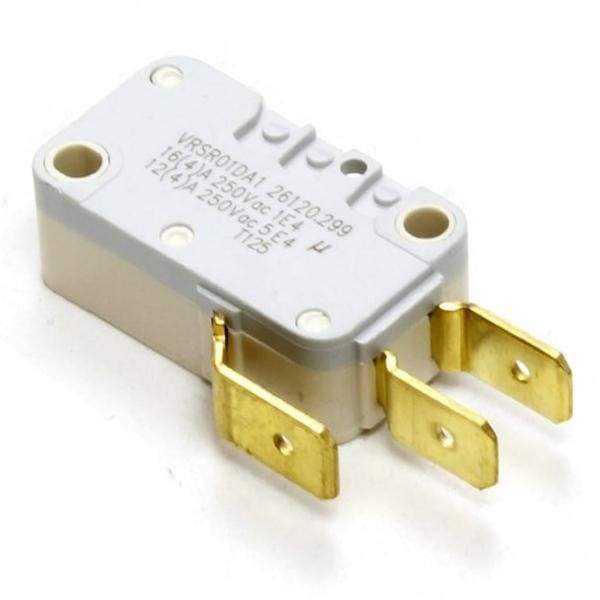

Universal ROLD Group Microswitch, Genuine Manufacturer for Bosch

Specs: 3 short contact. 16(4)A, 250V, 1E4 - 12(4)A, 250V, 5E4. T125.

ROLD GROUP VR Series

The core of VR switches is the patented coupling between the contact blade and the shared terminal. A silver wire is welded and pressed onto the latter, becoming the rotation core of the contact blade. The rolling of the blade onto the silver wire combines switch tripping point precision and high electrical performance. The elastic component of the snap mechanism is made up of steel springs that guarantee an excellent mechanical durability and minimal differential force. The variation of their thickness also enables different operating forces to be obtained, keeping terminal contact pressure unaltered.

 Suits:

GW500, GW501, GW503, GW508,
GW600, GW601, GW603, GW608,
GW700, GW701, GW703, GW708
MW500, MW501, MW503, GW508,
MW600, MW601, MW603, GW608,
MW700 MW051, MW501
LW Fresh LW095 AW095
