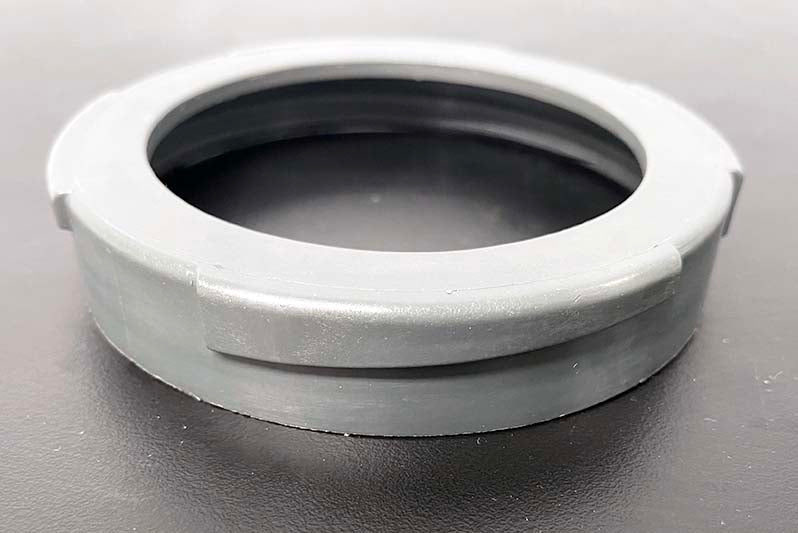

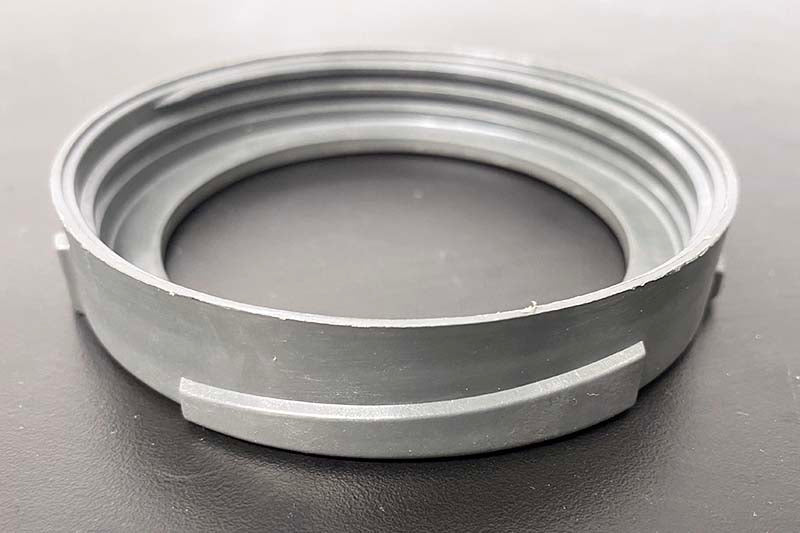

Kenwood Mixer Glass Bowl Ring Nut - AS00002704

This is the replacement glass bowl ring nut for some Kenwood mixers manufactured from December 2021 onwards. This will not suit older mixers that have the old locking base.

This is the replacement for KW717073, but will not directly replace it. You will need to replace the locking base and bowls to suit the new ring nut. See technical bulletin notes in the gallery.

Suits:

Models from December 2021 (post-21D14 batch) onwards for glass bowls AW20011055

0W20011139 KMX754BK GB, MY KENWOOD
0W20011140 KMX754RD GB, MY KENWOOD
0W20011141 KMX754CR GB, MY KENWOOD
0W20011142 KMX754WH GB, MY KENWOOD
0W20011192 KMX754BK AU, NZ KENWOOD
0W20011193 KMX754RD AU, NZ KENWOOD
0W20011194 KMX754WH AU, NZ KENWOOD
0W20011196 KMX754CR AU, NZ KENWOOD
AW20011055 Glass Bowl INT KENWOOD
0W20011390 KMX754ABK GB, MY KENWOOD
0W20011391 KMX754ACR GB, MY KENWOOD
AW20011055 Glass Bowl INT KENWOOD
0W20011393 KMX754AWH GB, MY KENWOOD
0W20011394 KMX754ARD GB, MY KENWOOD
0W20011404 KMX750AAR GB KENWOOD
0W20011405 KMX750AAB GB KENWOOD
0W20011406 KMX750AAC GB KENWOOD
0W20011407 KMX750AAW GB KENWOOD
0W20011417 KMX750AAB INT KENWOOD
0W20011426 KMX750AAW INT KENWOOD
0W20011425 KMX750AAR INT KENWOOD
0W20011408 KMX750AAC CN KENWOOD
0W20011421 KMX750ABK INT KENWOOD
0W20011424 KMX750AWH INT KENWOOD
0W20011423 KMX750ARD INT KENWOOD
0W20011422 KMX750ACR INT KENWOOD
0W20011400 KMX750ABK IL KENWOOD
0W20011401 KMX750ACR IL KENWOOD
0W20011402 KMX750ARD IL KENWOOD
0W20011403 KMX750AWH IL KENWOOD
0W20011416 KMX752ARD CN KENWOOD
0W20011413 KMX760ABC GB KENWOOD
0W20011414 KMX760ACH GB KENWOOD
0W20011415 KMX760AYG GB KENWOOD
0W20011420 KMX760AGD GB KENWOOD
0W20011395 KMX760AGD INT KENWOOD
0W20011396 KMX760ABC INT KENWOOD
0W20011397 KMX760ACH INT KENWOOD
0W20011398 KMX760AYG INT KENWOOD
0W20011399 KMX760ACH CN KENWOOD
0W20011411 KMX761AGD IL KENWOOD
0W20011409 KMX761ABC IL KENWOOD
0W20011412 KMX761AYG IL KENWOOD
0W20011410 KMX761ACH IL KENWOOD
0W20011434 KMX760ABL GB KENWOOD
0W20011442 KMX760AGR INT KENWOOD
0W20011433 KMX754APP GB KENWOOD
0W20011432 KMX754APB GB KENWOOD
0W20011438 KMX754ABK AU, NZ KENWOOD
0W20011439 KMX754ARD AU, NZ KENWOOD
0W20011441 KMX760ABL INT KENWOOD
0W20011454 KMX750ABK IL KENWOOD
0W20011453 KMX770ACR IL KENWOOD
0W20011455 KMX770ARD IL KENWOOD
0W20011456 KMX77A0WH IL KENWOOD

For the following models, you will need the new bayonet base AS00002703 and the new glass bowl or stainless bowl equivalent.

Kenwood KMX754BK
Kenwood KMX754RD
Kenwood KMX754WH
Kenwood KMix KMX75
KMX754
KMX754BK
KMX754RD
KMX754WH
KMX754CR
