Product Overview

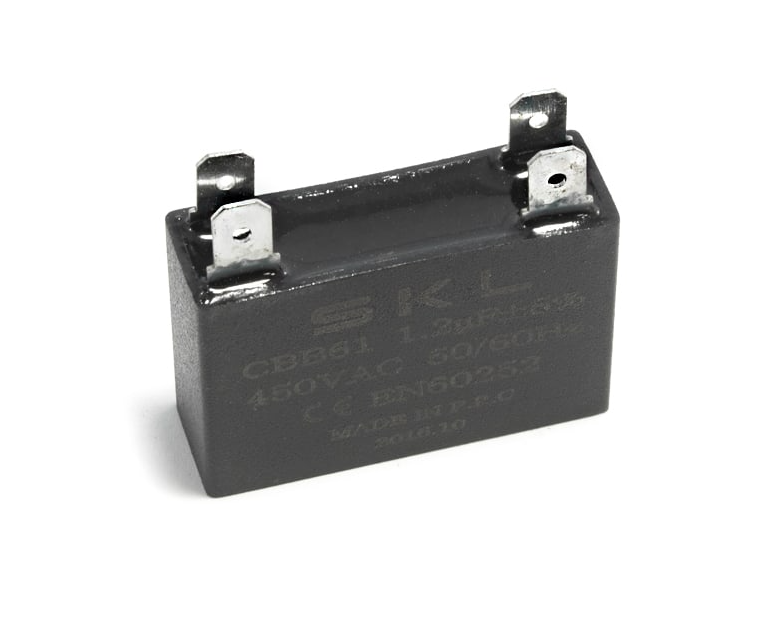

The SKL 1.2µF 450V AC Square Motor Run Capacitor (CBB61 type) is a compact, plastic box-type film capacitor designed to assist with the starting and continuous operation of single-phase fractional horsepower motors.
Housed in a flame-retardant, resin-filled rectangular case, this square-style capacitor delivers low dielectric loss, excellent self-healing properties, and long operating life under continuous duty. It is commonly used as a replacement capacitor in ceiling fans, rangehoods, exhaust fans, and small pump or appliance motors.
Key Features & Benefits
-
Compact Box Design: Dimensions of 37 × 13 × 23 mm allow direct fit into tight appliance junction boxes and fan housing compartments.
-
High Voltage Rating: Rated for up to 450V AC operation, offering strong insulation resistance and voltage surge tolerance.
-
Durable & Safe Construction: Encapsulated in epoxy resin within a heat-resistant plastic casing for moisture protection and stability.
-
Non-Polarized: AC design allows for straightforward, reversible wiring connections.
Technical Specifications
| Parameter | Specification |
| Capacitance | 1.2 µF (±5%) |
| Rated Voltage | 450V AC |
| Type | CBB61 Metallized Polypropylene Film / Motor Run |
| Shape / Form Factor | Rectangular / Square Box Type |
| Dimensions (L × W × H) | 37 mm × 13 mm × 23 mm |
| Frequency | 50 / 60 Hz |
| Housing Material | Flame-retardant plastic (epoxy resin filled) |
| Polarity | Non-polarized (AC) |
Typical Applications
Commonly used in single-phase motor circuits for appliances and ventilation equipment, including:
-
Rangehood extraction fans
-
Kitchen and bathroom exhaust fans
-
Ceiling and pedestal fans
-
Small pump motors and air circulating units
