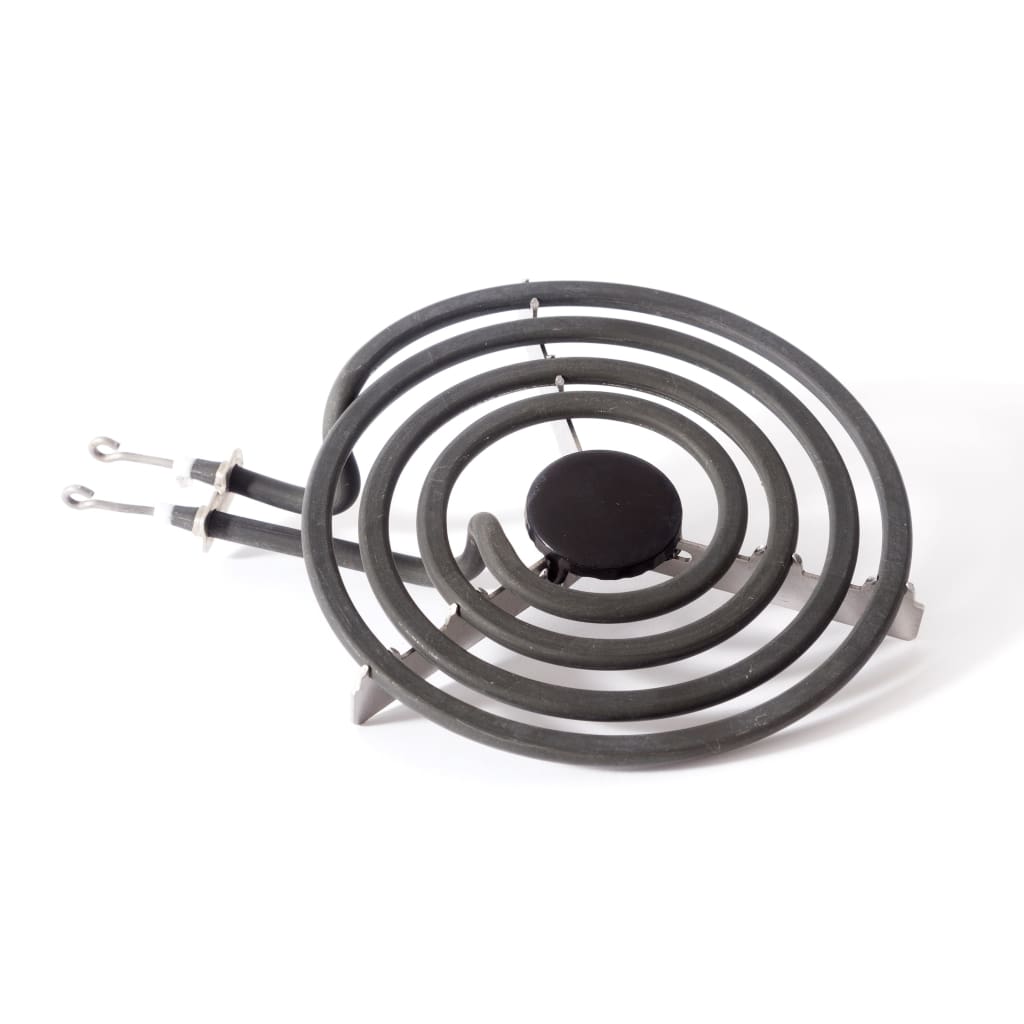

Westinghouse Simpson Oven Small 6" 150mm Element - 0122004591

If your Westinghouse or Simpson cooktop's small hob element has stopped heating, glows unevenly, or shows visible damage like cracks or burns, replacing it is a straightforward fix. This is the genuine Westinghouse and Simpson 150mm (6-inch) small hob element, part code 0122004591 (also known as NZ75375 and NZ75477). It is the standard small hob element fitted to Westinghouse 3U, 4U, and WLE series stoves, and Simpson 3U Mercury, Colombo, Saturn, Neptune, Cosmos, and Gemini series.

This is the brand new replacement supplied as the latest superseded version of the original 0122004546. It fits the standard 150mm (6-inch) recess on Westinghouse and Simpson cooktops where the model number begins with 3U, 4U, or WL. Always check your stove's model number before ordering -- it is usually printed on a label on the back of the stove or on the inside of the storage drawer. Cross-references include NZ75375, NZ75477, 75477, STR77, ZOPPA6, and the older XXS0040901011 code.

Key Features

• Genuine Westinghouse and Simpson replacement small hob element
• Part codes: 0122004591 / NZ75375 / NZ75477
• Diameter: 150mm (6 inch) -- the small hob position
• Type: RHP (radiant high power) coil element
• Cross-references: 0122004546 (superseded), 75477, STR77, ZOPPA6, XXS0040901011, XX0040901010, 30101200109, 140101087017
• Fits Westinghouse 3U, 4U, and WLE series stoves -- including Mercury, Colombo, Saturn, Neptune variants
• Also fits Simpson 3U series Mercury, Colombo, Saturn, Neptune, Cosmos, and Gemini stoves
• Brand new -- supersedes original 0122004546

Product Details

• Product code: 0122004591
• Supersedes: 0122004546
• Also catalogued as: NZ75375, NZ75477, 75477
• Cross-references: STR77, ZOPPA6, XXS0040901011, XX0040901010, 30101200109, 140101087017
• Type: Small hob RHP (radiant high power) coil element
• Diameter: 150mm (6 inch)
• Stock: Check live availability on the product page

Compatibility

Part 0122004591 fits all Westinghouse 3U, 4U, and WLE series cooktops and stoves -- this includes the Mercury, Colombo, Saturn, and Neptune model variants. It also fits Simpson 3U Mercury, Colombo, Saturn, Neptune, Cosmos, and Gemini series. The full verified series list appears in the table at the end of this description. As a rule of thumb: if your Westinghouse model number begins with 3U, 4U, or WL, and you have a 150mm (6-inch) hob position needing replacement, this is the correct element. Use our model spares directory or email us with your stove's full model number for help confirming.

How to Use and Installation Notes

• Switch off the cooktop at the wall and isolate the power supply completely before starting.
• Allow the cooktop to cool fully if it has been in use.
• Lift the old element out of its drip bowl -- on most Westinghouse/Simpson 3U, 4U, and WL series, the element terminal block lifts and unclips from the cooktop surface.
• Note the wiring connection positions and how the element terminals connect before fully removing -- take a photo if helpful.
• Disconnect the terminal wires from the old element.
• Connect the wires to the new 0122004591 element in the same positions.
• Seat the new element back into the drip bowl, ensuring it sits level and the terminal block is properly engaged with the cooktop frame.
• Restore power and test the element on a low setting first to confirm it heats correctly.

Fitting and Safety Note

Related Parts and Collections

If your Westinghouse or Simpson stove also has a large 180mm (7-inch) or 200mm (8-inch) element that needs replacement, we stock the full range of Westinghouse oven and cooktop elements. Browse the full collection for matching large elements, bake elements, grill elements, and other Westinghouse/Simpson stove components.

We also stock the wider oven heating elements collection covering Fisher and Paykel, Smeg, and other brands, and the Westinghouse oven spare parts collection for door seals, knobs, switches, and thermostats.

• Westinghouse elements collection

• Westinghouse oven spare parts

• Simpson spare parts collection

• All oven heating elements collection

Email us your model number at steve@appliancespares.nz if you need help confirming the correct small hob element.
